Displaying, signalling and operating in hospitals

Displaying, signalling and operating in hospitals

Nurses' station

Everything at a glance for a safe operation

All the information, including any alarms from operating theatres or intensive care units, comes together at the nurses’ station. It is good when the alarm indicator and test combination installed is as compact, simple to use and clear as possible. External alarms, (UPS off, laser warning on, etc.) should also be visible there. Alarm indicator and test combinations from Bender are adapted to your specific requirements.

REQUEST ADVICE

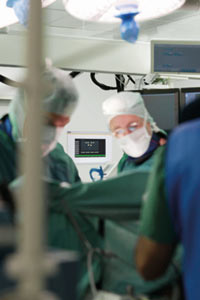

OP/Intensive care unit

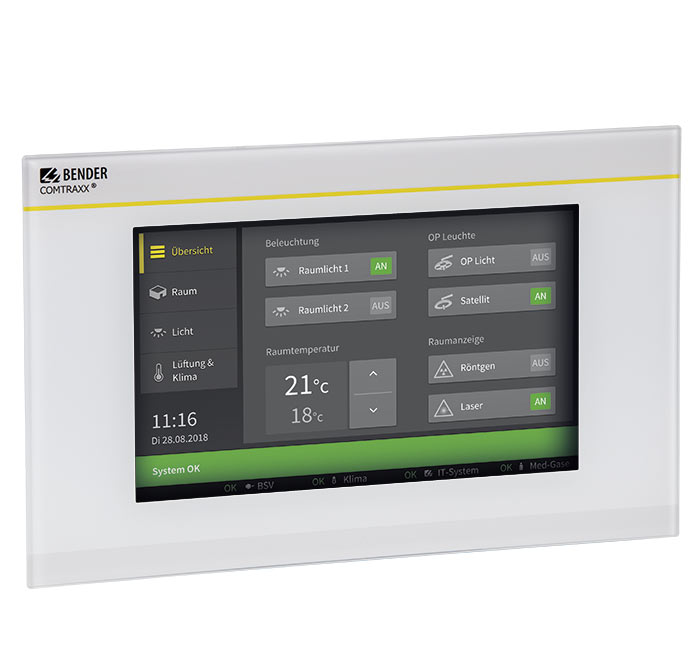

Focussing on the essentials: a central display unit

The aim in the operating theatre and intensive care unit is to avoid external problems where at all possible. Therefore, alarms from the electrical system and other crucial messages should preferably be displayed in one place. For this reason, it makes sense to summarise all technical information on the status of the care systems and display it centrally on a touch panel with an antibacterial foil.

REQUEST ADVICE

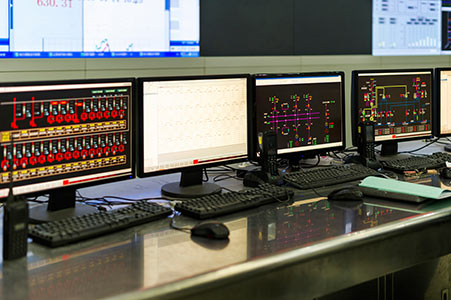

Control point

Central monitoring of electrical installations

Hospitals are centrally controlled and monitored. Data and alarms recorded locally should be forwarded to the central control room with no delay. Access to the Bender monitoring devices is simple and intuitive via a dedicated web server. Bender Condition Monitoring makes analysis, troubleshooting and visualisation of your whole system easier.

REQUEST ADVICE

Downloads

NameCategorySizeLanguageTimestampD-/B-Number
Panels Product Overviews 2.5 MB EN2024/01/0808.01.2024
Electrical safety costs little Market Segment Brochures 7.6 MB EN2024/05/0202.05.2024
Exacting Demands in Terms of Hygiene and Aesthetics Technical article 271.3 KB EN2019/05/1313.05.2019
Renovation and restructuring of the Operating theatres in the Marienkrankenhaus Hamburg Technical article 20.0 B EN2023/04/1717.04.2023
Proven electrical safety technology is now finding its way to Singapore as well Technical article 20.0 B EN2023/04/1717.04.2023

Products

Communication

COMTRAXX® COM465IP

Condition Monitor with an integrated gateway for the connection of Bender devices to Ethernet-TCP/IP networks

Powerscout
POWERSCOUT®

Recognising connections – optimising maintenance

Operator Control Panels

COMTRAXX® CP9xx
COMTRAXX® CP9xx series

Control Panel - signalling and operating panel for medical and other areas

Communication

COMTRAXX® COM465IP

Condition Monitor with an integrated gateway for the connection of Bender devices to Ethernet-TCP/IP networks

Details
Powerscout
POWERSCOUT®

Recognising connections – optimising maintenance

Details

Operator Control Panels

COMTRAXX® CP9xx
COMTRAXX® CP9xx series

Control Panel - signalling and operating panel for medical and other areas

Details

Standards

DIN VDE 0100-710

Errichten von Niederspannungsanlagen - Teil 7-710: Anforderungen für Betriebsstätten, Räume und Anlagen besonderer Art – Medizinisch genutzte Bereiche

HD 60364-7-710

Low-voltage electrical installations - Part 7-710: Requirements for special installations or locations - Medical locations (IEC 60364-7-710:2002, modified); German implementation HD 60364-7-710:2012

IEC 60364-7-710

Electrical installations of buildings - Part 7-710: Requirements for special installations or locations - Medical locations

IEC 60947-6-1

Low-voltage switchgear and controlgear - Part 6-1: Multiple function equipment - Transfer switching equipment
